Intro: In this tutorial, you will learn how to change the time value for parameter T4 from 0.40 seconds to 0.36 seconds. Use the same the same method when changing parameter T9.
Shown in the photo on the left is the first screen after turning the Control Box Power Switch ON.
First step is to go to Novaseal Pulse Cutter screen. To do so, press ESC Button.
Novaseal Pulse Cutter Screen
To change values, you need to go to the Main Menu screen. To do so, press OK Button.
Main Menu Screen
To change a parameter, select “PARAMETER”
To select the PARAMETER option, use the down arrow (2) until the PARAMETER option is selected. Once selected, the option will blink. Next press the OK Button.
Parameter Screen
The first parameter shown is T1. To change from T1 to T4, move the cursor to the “1” to the right of the “T” as circled in the photo to the left. To change this number to “4”, simply press the up arrow (5) until the number “4” is displayed next to the letter “T”. To finalize your selection of T4, press the OK Button.
Parameter T4 Screen
Note preset value for T4 is 00.40 seconds.
Press the OK Button to change the value.
Press the right arrow to move to the lower right corner. Press the OK Button to modify the time parameter value. The first # will start blinking. Press the UP arrow to modify the first number. In this example, change it to ‘6’. Now press the left arrow to move the cursor to the next number to the left. Change this value to ‘3’. Next press the OK Button.

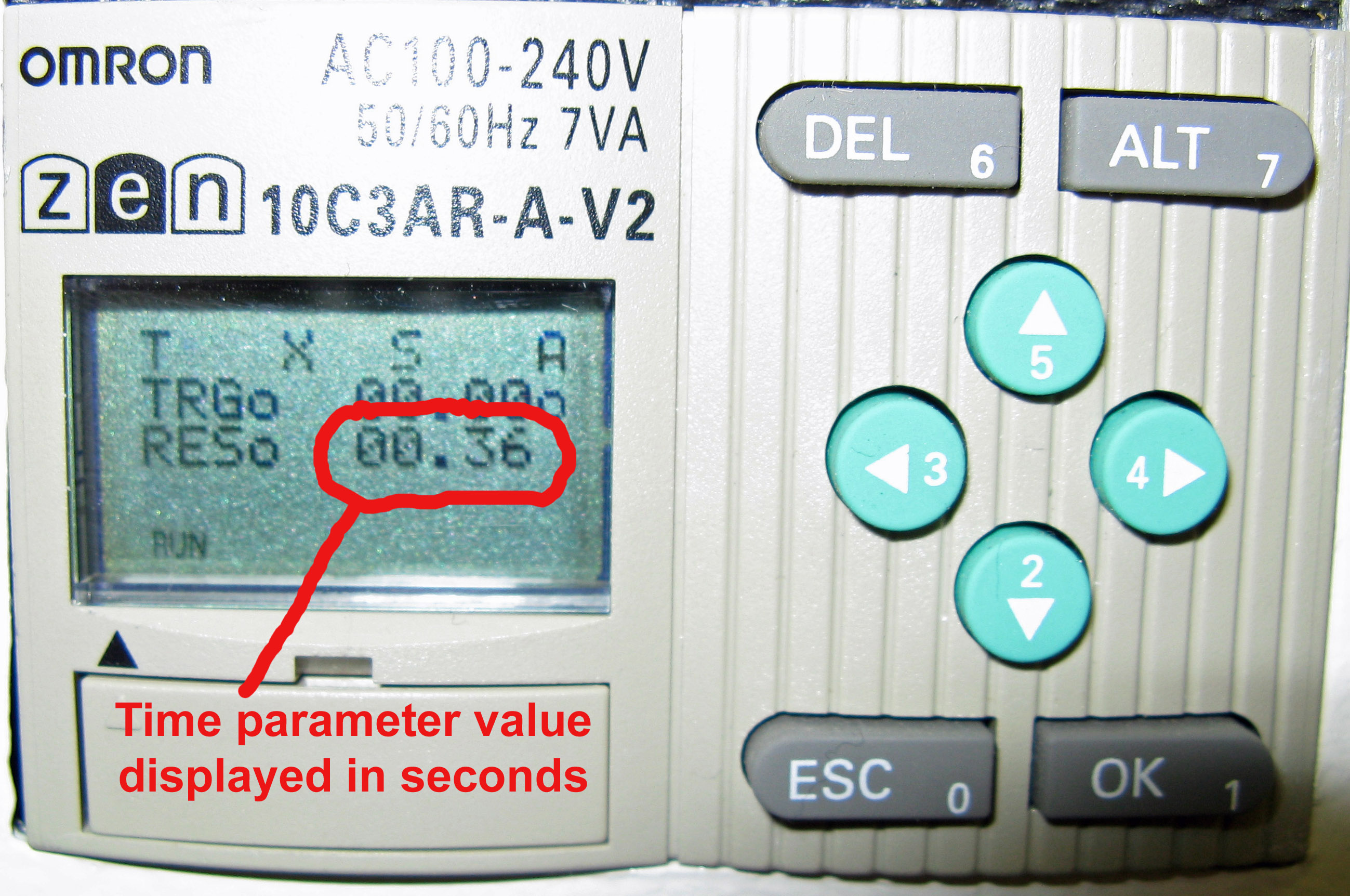

The changes made in this example changed the T4 parameter from 0.40 seconds to 0.36 seconds.
Press the ESC Button 3-times to go back to the Novaseal Pulse Cutter screen. The new Parameter value for T4 has been changed.
