INSTRUCTIONS
As common with virtually all Novaseal® machines, controls are simple and machines are easy to use. EndSealer is no different. The EndSealer produces a 1/4-inch by 2-inch heat seal. Simply, locate the material you desire to seal under the Heat Die and press down the spring-activated hand press, hold in place for desired amount of time, then release. On most materials that is all you need to do. On some materials, cooling pressure is needed to permanently secure the heat sealed materials. If cooling pressure is needed, either use our optional Heat Seal Block, or any other heat sink material. Determining the amount of time to heat seal a material is best accomplished using trial and error methods. The two basic variables in producing optimal seals are seal temperature and seal time. When using our default settings for seal temperature, sealing time becomes the only real variable.
For a video of the operation described, click on the link below.

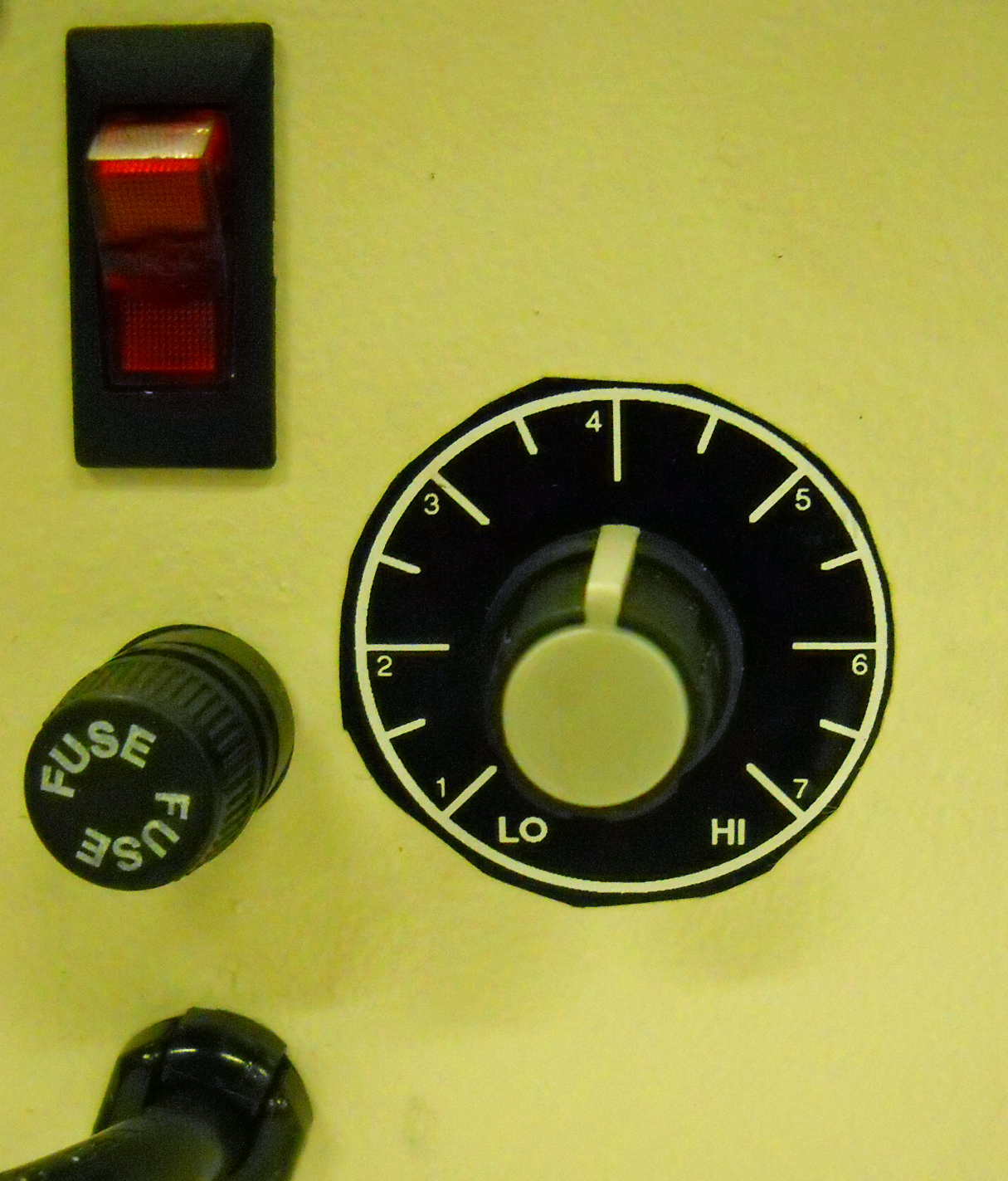

1. Use the Rocker ON/OFF Switch to turn on the EndSealer. EndSealer Controls are located at the rear of the EndSealer. When the EndSealer is ON, the Rocker Switch Lamp will illuminate.
 2. Next set the Sealing Temperature. Look for the Temperature Dial. Rotate to desired value. Factory default is 4 for mid range. Set temperature ranges from room temp to 500-deg F. Allow about 2-3 minutes for heat up. There is no indicator lamp that will tell you when the set temperature is met. Rotating the Temperature Dial clockwise will increase Heat Die temperature.
3. Once temperature is met, temperature will remain constant at specified setting. Begin sealing operation. Follow fresh new seal with Cooling Block pressure.
|
