EndSealer 500v2
USER’S MANUAL
PLEASE READ ENTIRE MANUAL BEFORE OPERATING THIS EQUIPMENT
Introduced February 2011
All Products Designed & Manufactured by Novaseal Corporation
in the United States since 1994. All Rights Reserved.
IMPORTANT SAFEGUARDS
- Read all instructions prior to operating.
- Warning: Electric shock could occur if used incorrectly or on wet surfaces.
- Do not touch hot surfaces.
- Keep hands, feet, loose clothing away from hot sealing die.
- Do not immerse any part of this product in water or other liquid.
- Do not use this product on wet or damp materials.
- Never use EndSealer in presence of flammable or combustible liquid or fumes.
- Do not cool the sealing die with liquid.
- Always operate product in a well-ventilated area or operate outdoors.
- Unplug product when not in use. Allow to cool completely before storing. Store in clean, dry area.
- Do not operate this product if cord or plug has been damaged in any way. If cord or plug is damaged, return this product to manufacturer for repair or adjustment.
- Never leave plugged-in product unintended.
- Use EndSealer only for its intended use as described in this User’s Manual.
- Appropriate, non-flammable work gloves are recommended to be worn when operating EndSealer.
- Manufacturer recommends wearing respirator when working with materials that generate toxic or hazardous fumes.
- Do not drop product.
- If power source or generator fails while the EndSealer is in use, simply turn off EndSealer, recharge power source or generator, and re-start EndSealer per instructions.
- Product must only be used with 110/120 VAC 50/60 Hz power source.
- WARNING: Sealing Die cooling time varies with ambient air temperature, operating temperature, existence of wind, etc. and therefore may take longer than expected to properly cool before touching the Sealing Die.
- All repairs must be made by qualified personnel at Novaseal. If repairs are necessary, package EndSealer securely and ship via prepaid UPS or FedEx service to attention of Customer Service, Novaseal Corporation, 6601 Lyons Road, Suite E-4, Coconut Creek, FL 33073 USA.
SAVE THESE INSTRUCTIONS
NAMING CONVENTION

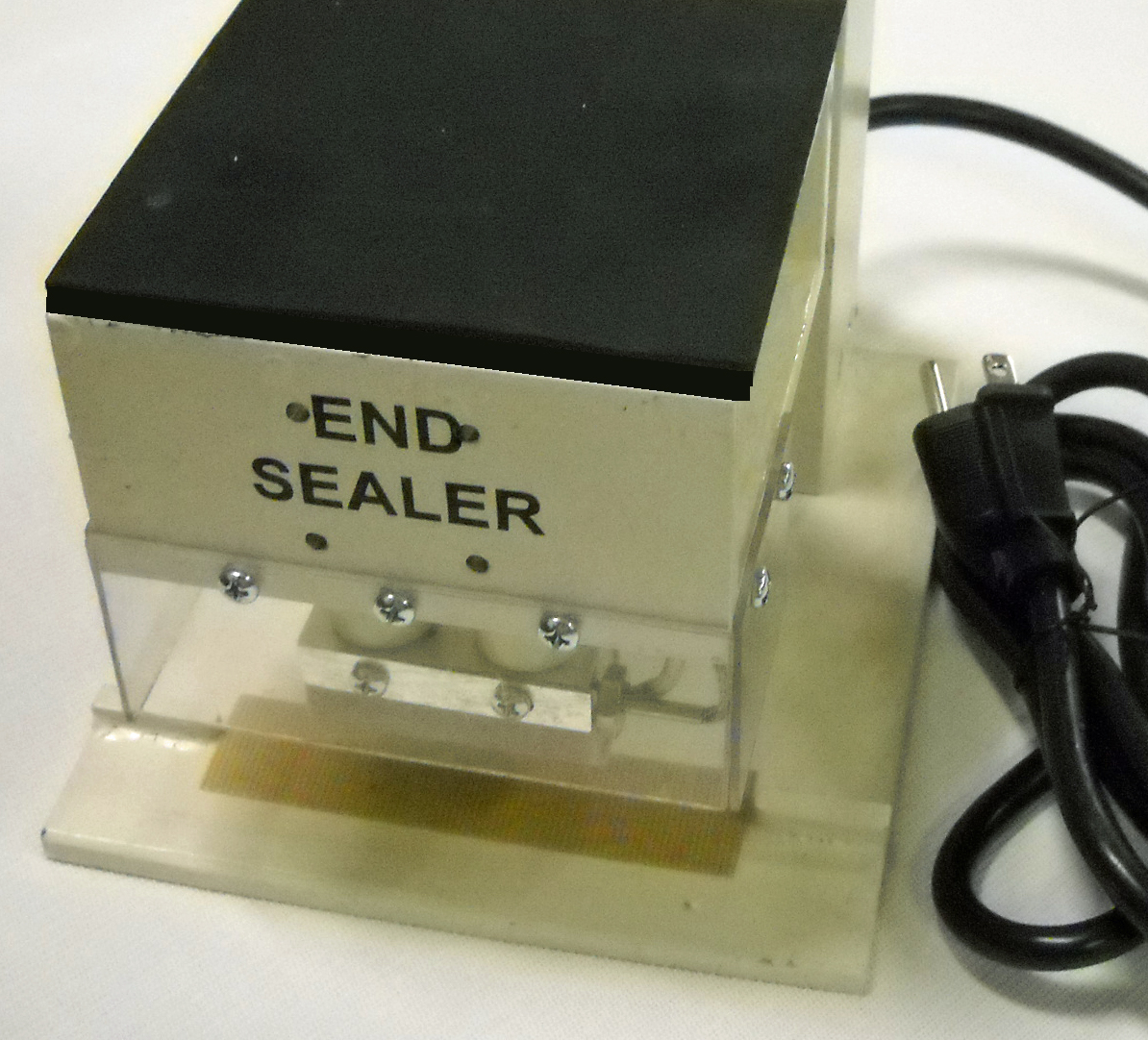

The following images define our standard naming convention as it relates to the EndSealer. Reference to these names will be referred to throughout this document.

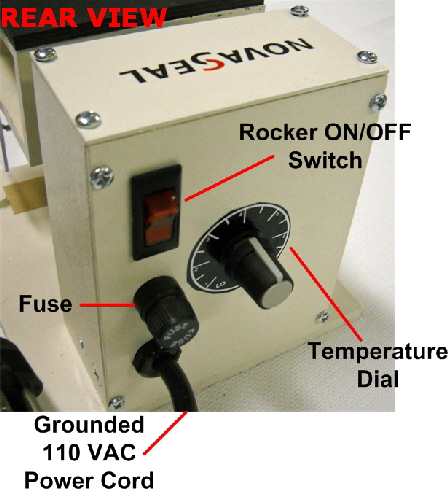

Rear View shown above for EndSealer 500 Release 1. Click here for control plate side of EndSealer 500 Release 2. Temperature Dial on Release 2 is larger and easier to read. Temperature Dial plate size is the only difference.
USE PREPARATION
ENDSEALER MUST ONLY BE POWERED BY A 110/120 VAC 50/60 HZ POWER SOURCE. TO AVOID ELECTRICAL CIRCUIT OVERLOAD OR POSSIBLE SHOCK, DO NOT USE WITH OTHER THAN 110/120 VAC 50/60 HZ POWER SOURCE.
- Before plugging in the EndSealer, make sure that the moveable press section can move freely up and down with slight pressure. Make sure the springs are maintaining an UP position.
- Additionally, make sure that the TCF Pad and TCF Material encompassing the Heat Die are in good condition.
- And make sure all screws are tight.
